Filling the Water Level on a Steam Boiler

Filling the Water Level on a Steam Boiler

Check the Water Fill Tube on the Boiler:

This video will help show the process.
https://www.youtube.com/watch?v=cDS1TMVF57o

Important:

Before starting, ensure the boiler and heating system are completely turned off and have cooled down to avoid burns or other injuries.

Steps:

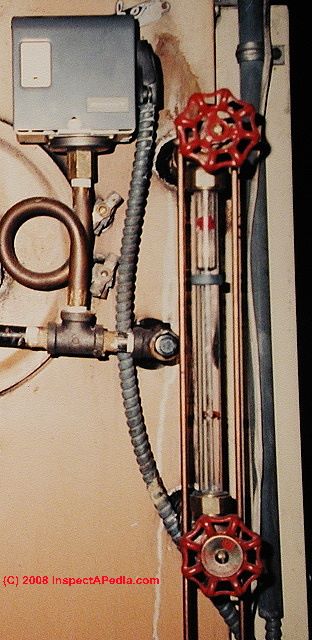

  • Locate the Sight Glass on the Boiler. It should look like the photo below.

  • If this tube has no water in it, your steam system will not work.


  • If there is very very little or no water in the system you have to add water.

  • Add Water: Start slowly adding water. You should hear water flowing into the system. Make sure you do not overfill the tube. There may be a marking on the tube indicating the level of water that should be added.


  • The normal water level should be no more than 1/2 to 3/4 of the way to the top of the tube.

  • Check the Pressure Gauge: Keep an eye on the boiler’s pressure gauge. Stop filling when it reaches the green zone, usually between 12-15 psi.


  • Warning:

                         Do not overfill the boiler. Doing so can cause dangerous pressure levels.
